LEVEL 2 CHARGING: EV03
How do you improve on perfection?
EverCharge has long been the benchmark for MUDs and fleet EV charging with our patented SmartPower™ technology. We raised the bar even higher by adding future proofing technologies and environmental resilience, ensuring customers have the most dependable solution in the world.

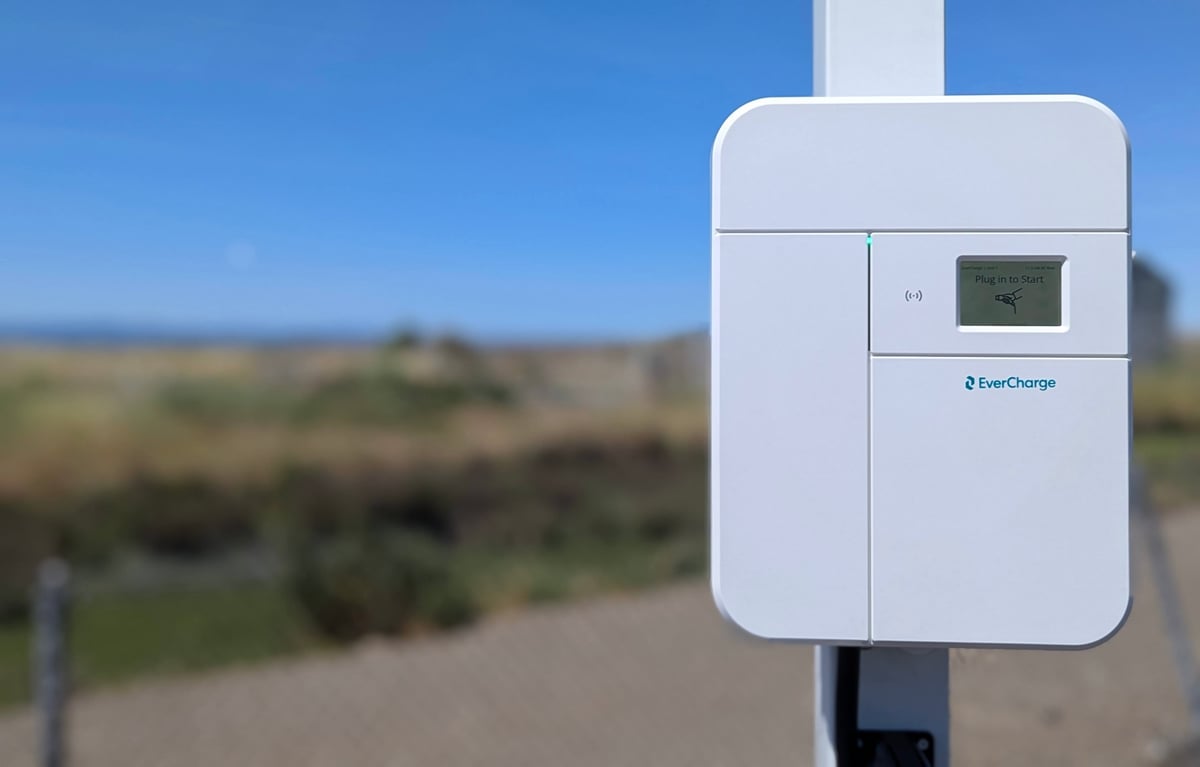

Meet EV03

We made the best even better

thermometer-sun-svgrepo-com-4

Rated up to 55°C

Illustration (4)

OCPP 1.6 compliant

Website Redesign Illustration

NEMA 4X rating

Illustration-2

ISO 15118 hardware ready

Illustration (1)

Unparalleled
charging efficiency

Illustration (3)

EverCharge
3-year warranty

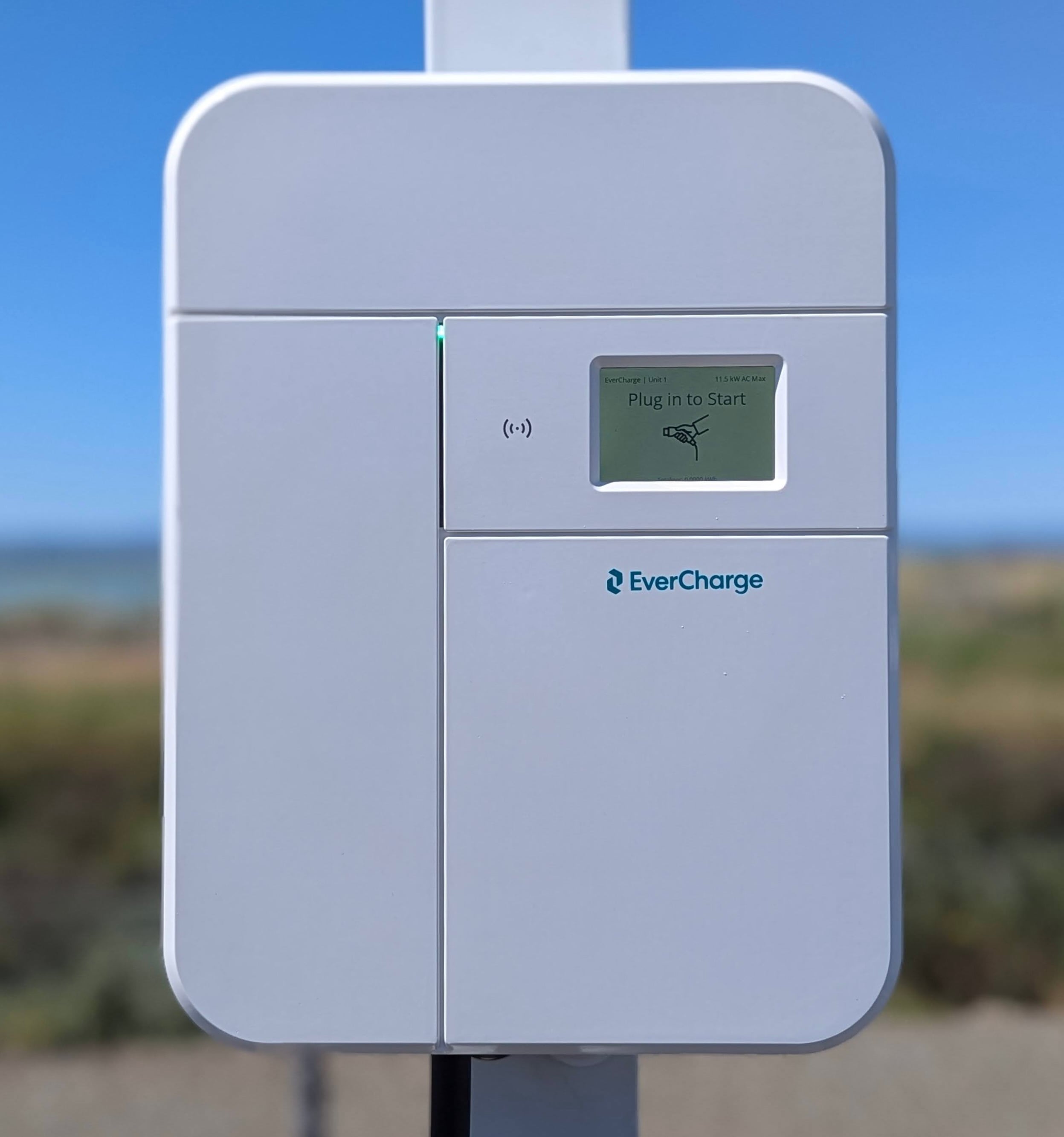

EV03 supports ISO15118 and OCPP 1.6
The best, now extensible

EV03 supports modern EV charging standards, including ISO 15118 and OCPP 1.6 compliance, ensuring seamless interoperability with industry-standard network management systems.

This connectivity is backed by EverCharge's deep technical expertise, providing your team with actionable data insights and world-class customer support.



Engineered for reliability

Built with a relentless focus on durability and consistent performance, EV03 prioritizes uptime and ease of operation over unnecessary complexity.

Our streamlined design eliminates redundant hardware components, effectively reducing potential points of failure while maintaining total flexibility across diverse deployment environments.

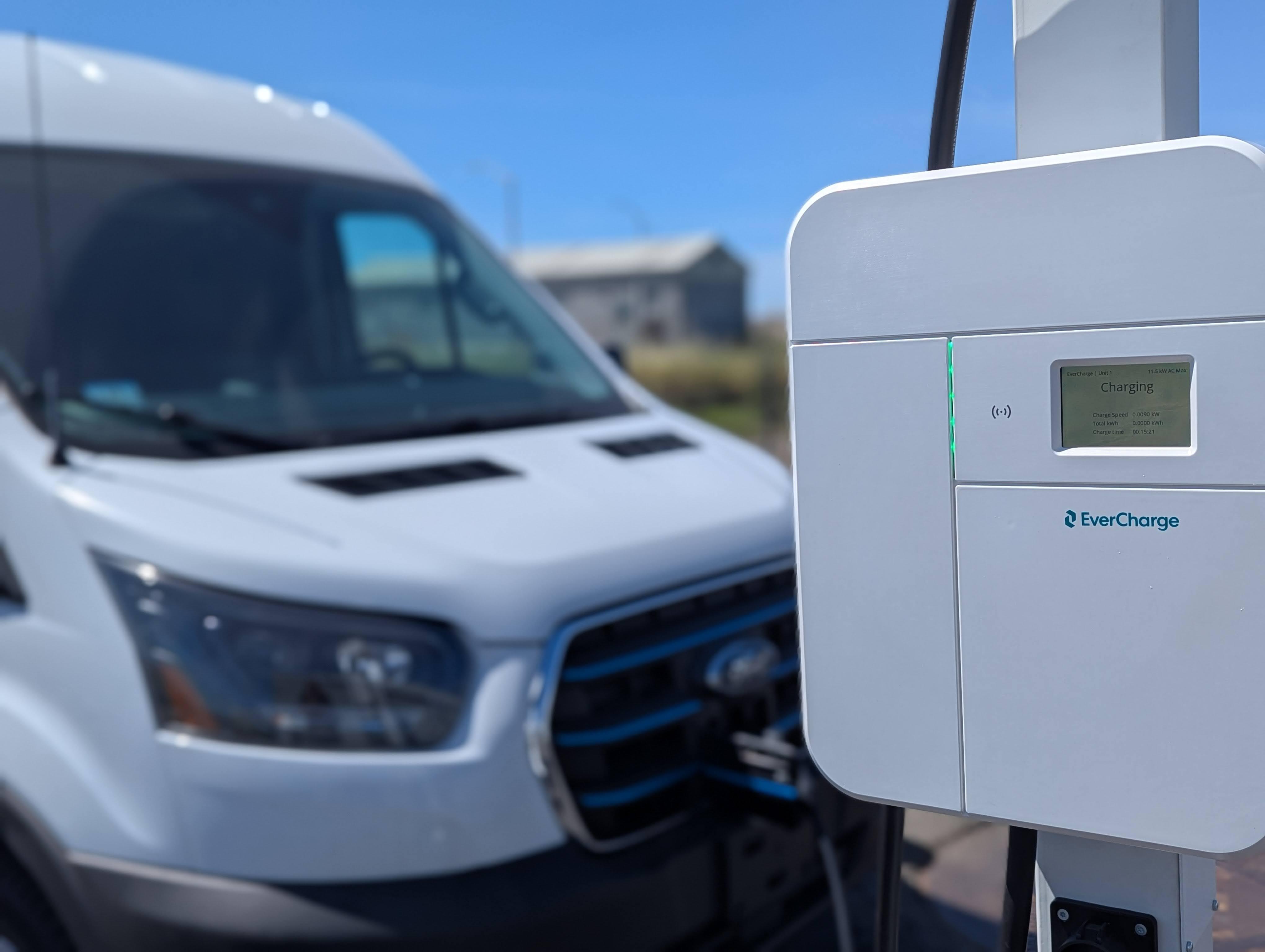

EV03 is streamlined and designed for longevity

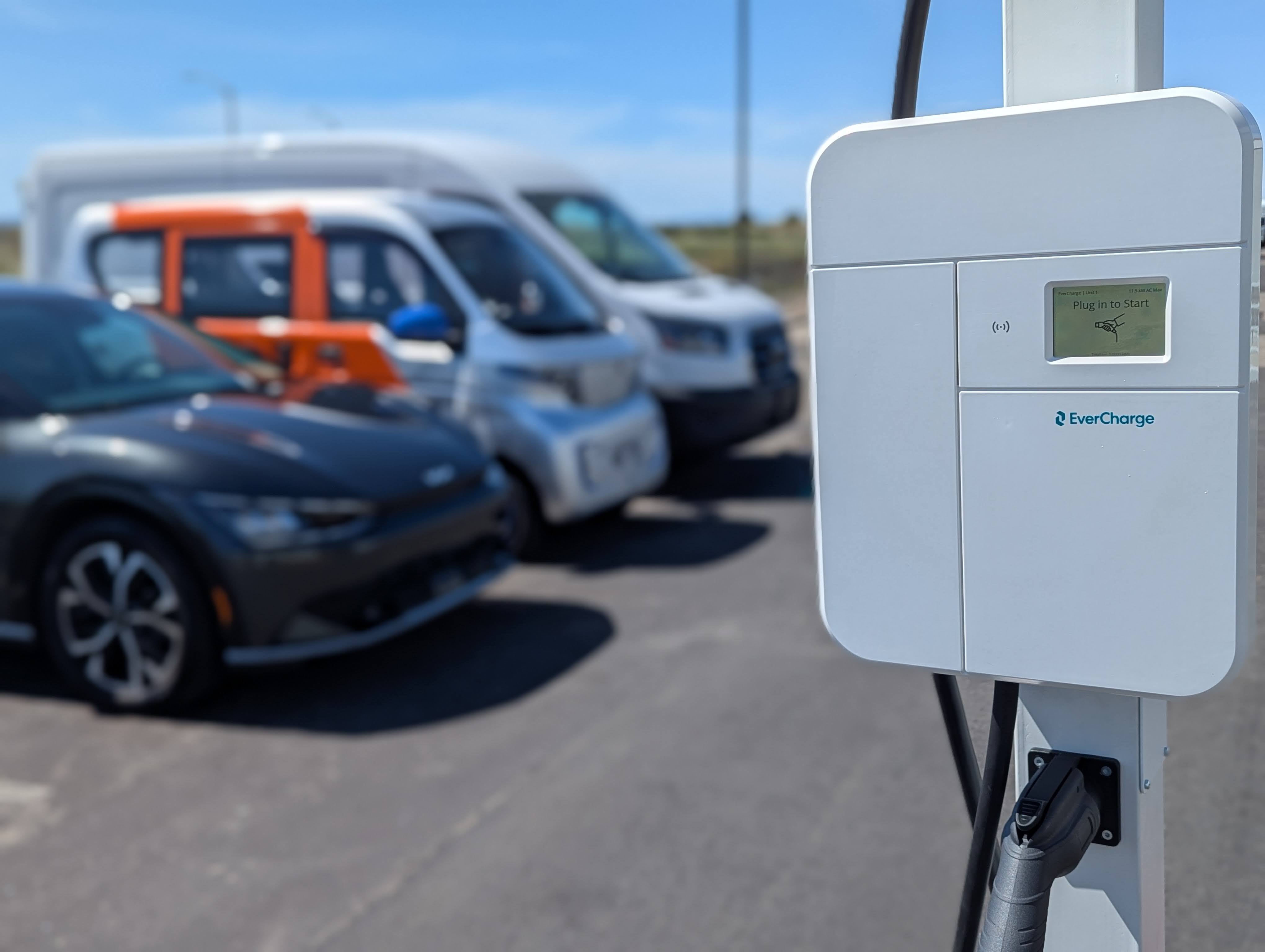

EV03 will lead the way in load balancing
Outsmarting grid limits

Don’t let dead-end hardware stall your operations; EverCharge's Gen 3 EVSE is engineered to evolve alongside your fleet's future needs.

By combining unparalleled dynamic load balancing to scale your current fleet with a forward-looking architecture, we lay the groundwork for advanced capabilities and sophisticated energy management.





EverCharge EV03 details

  • Power input
    Input rating
    208V or 240V AC single-phase
    Install
    L1, L2, and ground, hardwired
    Standby power
    1.61 watts
    Metering
    CTEP certified revenue-grade meter within 1% accuracy
  • Power output
    Output rating
    Maximum output: 48A
  • Protection
    Internal residual current detection
    20 mA CCID per UL 2231
    Electrical protection
    Over-current, short circuit, over-voltage, under-voltage, ground fault, surge protection, over temperature
    Plug-out protection
    Power output is terminated upon detection of plug-out
  • User interface and control
    Status indicators
    • LCD display
    • LED lights and audible tones
    RFID authentication
    ISO14443 Type A (Mifare), ISO 14443 Type B, ISO 18092
  • Environmental
    Operating temperature
    -22°F to 131°F (-30°C to 55°C)
    Operating humidity
    Up to 95% relative humidity non-condensing
  • Mechanical
    Charging cable length
    24’ (7.3m)
    Ingress protection
    NEMA 4X
    Mounting type
    Wall-mount, pole-mount, ceiling-mount, and pedestal
    Dimensions
    H: 15.8”(401mm) W: 11.9”(301mm) D: 5.6”(142mm)
    Net weight
    20 lb (9 kg)
  • Regulation
    Safety and compliance
    • UL and cULus listed; complies with UL2594 and UL2231
    • EnergyStart
    Charging interface
    SAE J1772 or NACS connector
  • Connectivity
    Wireless
    • Wifi
    • EverCharge mesh and optional cellular
